network-based measurement, data recording and testing
The EBIS product family offers a variety of interfaces for telemetry data acquisition and industrial measurement of analog and digital quantities, as well as for the acquisition of measuring probes, rotary encoders, angle/length encoders and for controlling motors. EBIS based modules are used for the acquisition of measured variables in quality assurance and predictable maintenance as well as for the control of complete machines and processes.
Basic features:
- 24V Power Supply
- Table-top design with rail mount option
- Cloud support (MQTT, Azure, AWS)
- Open network interface
- .NET Library
- Web-Server for configuration
- Update via Web-Interface / Network
- Signal LEDs
- Power Supply
- Network connection status
- Error
- Usage of standard network cable
- Optional IP54 versions

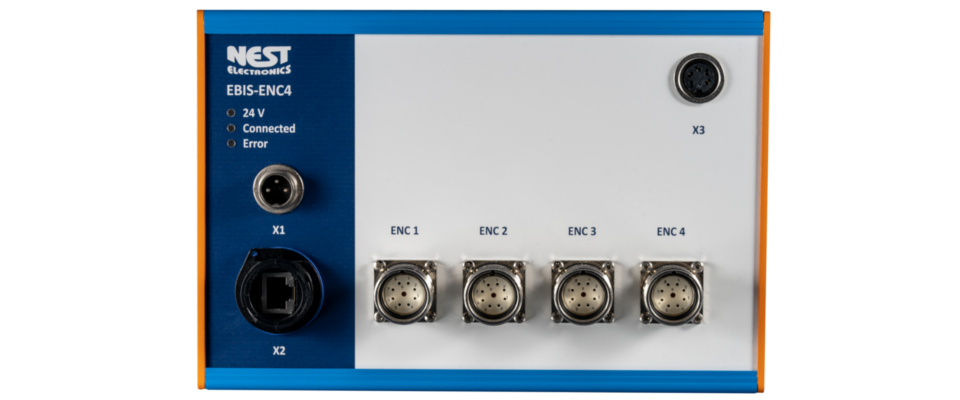

EBIS-ENC4
Features
- 4 Channel Counter Interface
- sin/cos 1Vss, 11µA, 5V incremental
- 3 Counter á 24bit
- 1 Counter á 16bit
- Regulated 5V/250mA voltage supply
- 9-pin M23 circular connectors
- Trigger input (X3) for e.g. foot switch
Fields of application
- Automotive industry
- Machine tool industry
- Medical production measurement
- Optical industry
- Wind power plants
- Control technology
- Robotics
Versions
EBIS-ENC4 (AXIS) / X3 option
- Support for one simultaneous Axes with external driver
EBIS-ENC4 (AXIS-P) / X3 option
- Support for one simultaneous Axis with internal driver (up to 3A)

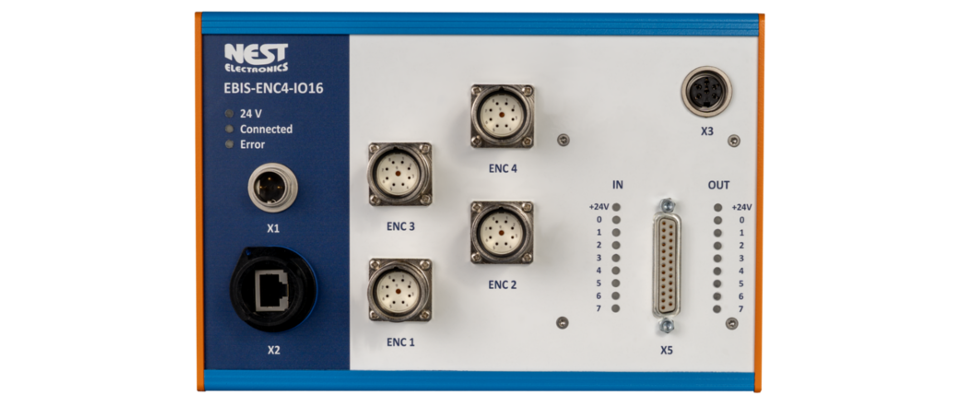

EBIS-ENC4-IO16
Features
- 4 Channel Counter Interface
- sin/cos 1Vss, 5V incremental, 11µA
- 3 Counter á 24bit
- 1 Counter á 16bit
- 16 Channel Digital IO Interface
- 8 Input Channels
- 8 Output Channels
- Opto isolated
- 12-48V operating voltage
- Trigger input (X3) for e.g. foot switch
Fields of application
- Automotive industry
- Machine tool industry
- Medical production measurement
- Optical industry
- Control technology
- Robotics
Versions
EBIS-ENC4-IO16 (AXIS) / X3 option
- Support for one simultaneous Axes with external driver
EBIS-ENC4-IO16 (AXIS-P) / X3 option
- Support for one simultaneous Axis with internal driver
(up to 3A)
EBIS-TF8
Features
- 8 Channel Tranceducer interface for position encoders
- Half-Bridge / LVDT
- M18 Connector, 5pol.
- 24bit
- Temperature compensation
- QDAS Procella support
- Trigger input (X3) for e.g. foot switch
Fields of application
- Automotive industry
- Machine tool industry
- Medical production measurement
- Optical industry
- Structural design
Versions
EBIS-TF8(ADC) / X3 option
- Additional 4 independent ADC Channels
EBIS-TF8-IO16
Features
- 8 Channel Tranceducer interface for position encoders
- Half-Bridge / LVDT
- M18 Connector, 5pol.
- 24bit
- Temperature compensation
- 16 Channel Digital IO Interface
- 8 Input Channels
- 8 Output Channels
- Opto isolated
- 12-48V operating voltage
Fields of application
- Automotive industry
- Machine tool industry
- Medical production measurement
- Optical industry
- Structural design
- Wind power plants
Versions
EBIS-TF8-IO16(ADC) / X3 option
- Additional 4 independent ADC Channels
EBIS-TF16
Features
- 16 Channel Tranceducer interface for position encoders
- Half-Bridge / LVDT
- M18 Connector, 5pol.
- 24bit
- Temperature compensation
- Trigger input (X3) for e.g. foot switch
Fields of application
- Automotive industry
- Machine tool industry
- Medical production measurement
- Optical industry
- Structural design
- Wind power plants
Versions
EBIS-TF16(ADC) / X3 option
- Additional 4 independent ADC Channels
EBIS-ADC-IO16
Features
- 16 Channel Analog Input, 16bit
- +/- 10V Input Voltage
- 16 Channel Digital IO Interface
- 8 Input Channels
- 8 Output Channels
- Opto isolated channels
- 12-48V
- Trigger input (X3) for e.g. foot switch
Fields of application
- Electronic industry
- Battery production
- Wind power plants
- Biogas plants
- Automotive industry
- Machine tool industry
EBIS-MUX10
Features
- 8 Digimatic (Mitutoyo protocol) channels
- 2 RS232 channels
- Externernal Trigger input (X3) for synchronization
Fields of application
- Automotive industry
- Machine tool industry
- Medical production measurement
